Code: E05
L*W*H: 8.5*3.3*3.2 M
Area Covered: 28 M2
No.of Guests: 2 Persons
Power Consumption: 8 KW
Total Weight: ≈ 7T

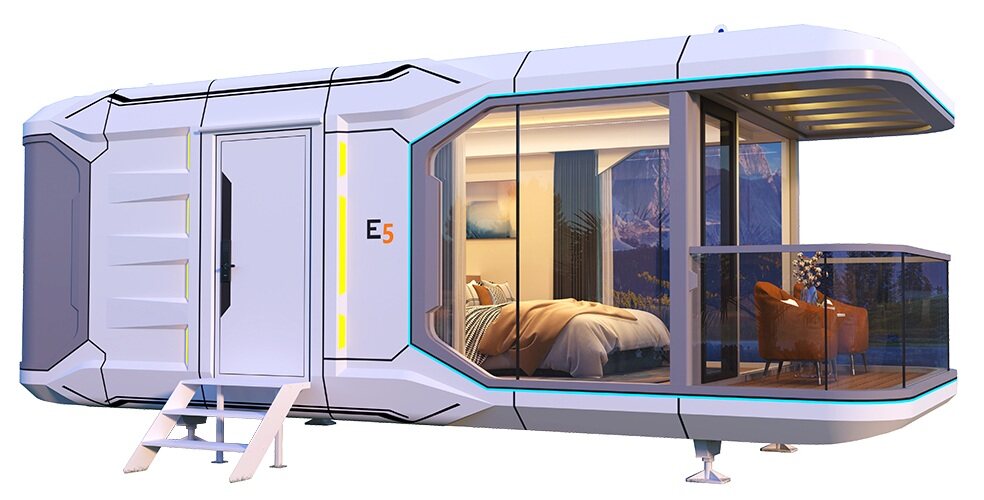

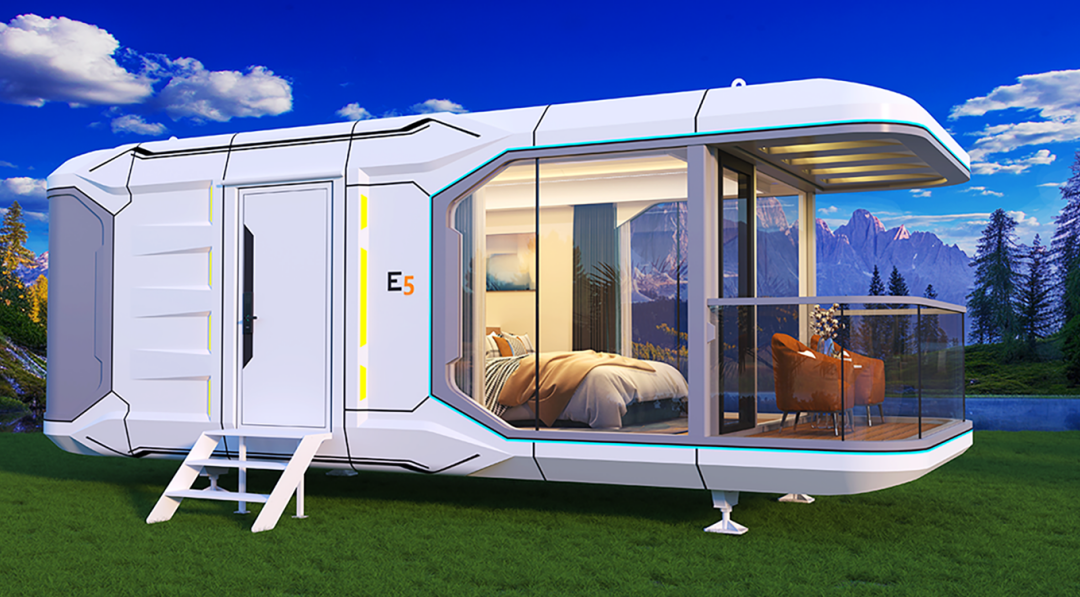

| Name | Space Capsule E05 |
| Code | E05 |
| Size L*W*H | 8.5*3.3*3.2 M |
| Area Covered | 28 M2 |
| No.of Guests | 2 Persons |
| Power Consumption | 8 KW |
| Total Weight | ≈ 7T |
| Peripheral Protection System |
Galvanized steel structural framework system;
Fluorocarbon paint sprayed aluminum plate shell module;
Thermal insulation, waterproof and moisture-proof construction svstem;
Low-E laminated tempered floor glass;
Aluminum alloy doors and windows;
Hollow laminated tempered glass skylight;
Painted stainless steel flat opening entrance door;
Panoramic balcony;
|
| Customer Control System |
Multi scenario mode function panel;
Lighting/Electric Curtains;
Intelligent voice control;
Hotel intelligent access control;
|
| Indoor Decoration |
Aluminum panel ceiling/wall module/stone crystal wood grain floor;
Bathroom privacy glass door;
Bathroom shower room/marble/tile floor;
Washbasin/sink/bathroom mirror;
Hanging clothes hook/shower storage rack/towel rack;
Faucet/flower wine/floor drain;
Whole house lighting system;
Whole house water and electricity system;
Standard color blackout curtains;
Cold and hot air conditioning; Electric water heater; Fresh air system; Mosauito and insect screen doors and windows;
Lighting, heating, ventilation, blowing, bath heater; Brand closestool;
|
| Optional Hard Furniture | Wardrobe; Cupboard; Bar counter; |
1. Factory Shipping
After the products are packaged, they are transported by large flatbed trucks. Strict safety protection measures will be taken when products are transported from the factory to the camp to ensure safety and stability during transportation.
2. Product Hoisting
After the transport truck arrives at the local area, it needs to be hoisted and lowered usina a larae crane. After the Space Capsule arrives at the project site, the corresponding lifting equipment, lifting position and tonnage data should be provided based on the actual conditions on site.
